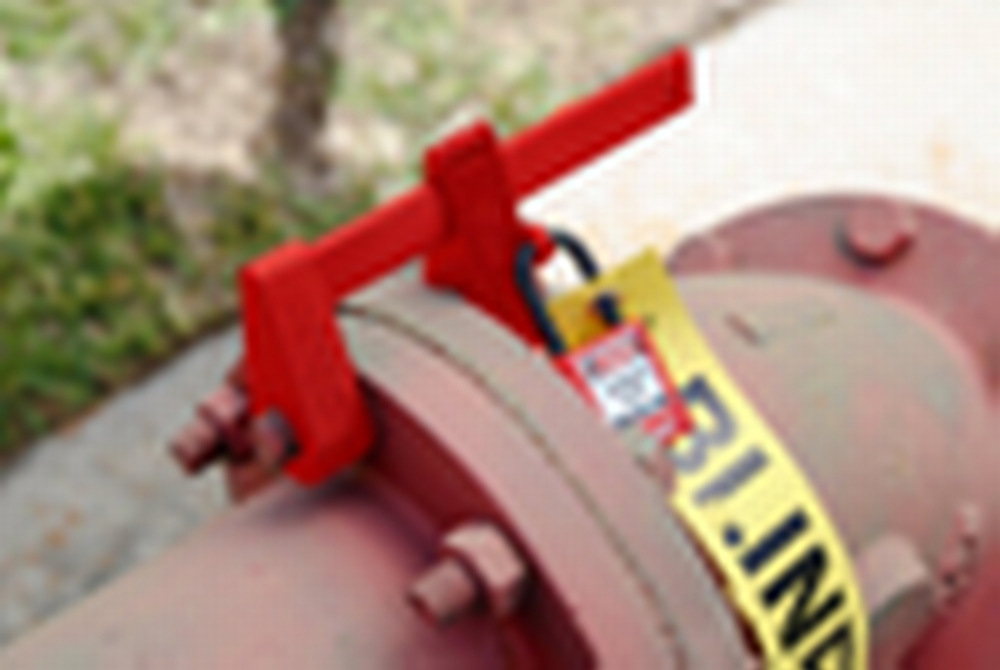

Blind Flange Lockout (Pipe Size 1-1/2" - 5-5/8")

Blind Flange Lockout (Pipe Size 1-1/2" - 5-5/8")

SKU: KDD501
...
This material is protected by:

Effectively lockout and prevent unintentional pipe blind removal during maintenance.

  • Constructed of durable, high-impact plastic to withstand harsh environments
  • Ideal for use in temperature of -4°F to 140°F
  • Maximum shackle diameter 9/32-inches
  • Adjustable device provides a tight fit

View in Virtual Catalog: Page 13, Page 456

Class 150

  • Fits Nut Diameter - .75" to .88" (19.05mm –22.35mm
  • 2.0", 2.50", 3", 3.5", 4.0", 5.0", 6.0", and 8.0" (50.8, 63.5, 76.2, 88.9, 101.6, 127, 152.4, and 203.2mm)
  • Class 300
  • .75" to 1.00" (19.05mm –25.4mm)
  • 2.0", 2.50", 3", 3.5", 4.0", 5.0", and 6.0" (50.8, 63.5, 76.2, 88.9, 101.6, 127 and 152.4mm)
  • Pipe Flange Width Range
  • 1-1/2" - 5-5/8" (38.1.3mm - 142.88mm)
  • For Pipe Range 3-3/4" - 10-3/4" please refer to KDD502
    For Pipe Range 7-3/4" - 17-7/8" please refer to KDD503

    123
    Extended Price:
    0 for 1
    Your Cost:
    0 for 1
    Eligible for FREE SHIPPING on orders over $750* Details
    NOT eligible for our FREE SHIPPING promotion.
    Freight Only
    Due to it's size or weight, this product can only be shipped via Freight.
    Minimum Qty Not Met
    Please adjust your quantity to meet the minimum before proceeding with your order.
    US Shipping Only
    Because of legal restrictions, we are unable to ship this product outside of the United States at this time. We apologize for any inconvenience this may cause.
    Request Quote Today

    This product is not currently available for online orders. To order, please contact your account manager at (800) 237-1001.

    Related Products
    Product Description
    The adjustable-bracket fit device covers and conceals flange bolt and nut on both ends, prevents the opportunity for removal, until maintenance work on the pipeline is done. Available in three different sizes to meet pipe flange width ranges. Durable, high-impact plastic to withstand harsh environments.
