Product Description
Steel/Plastic BarricadesDirect and control motorists, bicyclists and pedestrians in temporary traffic control zones.
Use barricades during highway construction, utility work and other traffic management operations. Metal/plastic barricades feature 12-gauge painted, steel legs and plastic panels that will not warp or peel. Designed with recessed holes for panel mounting – no drilling required. Portable and lightweight barricades fold completely flat so that up to 50 fit on a standard pallet.

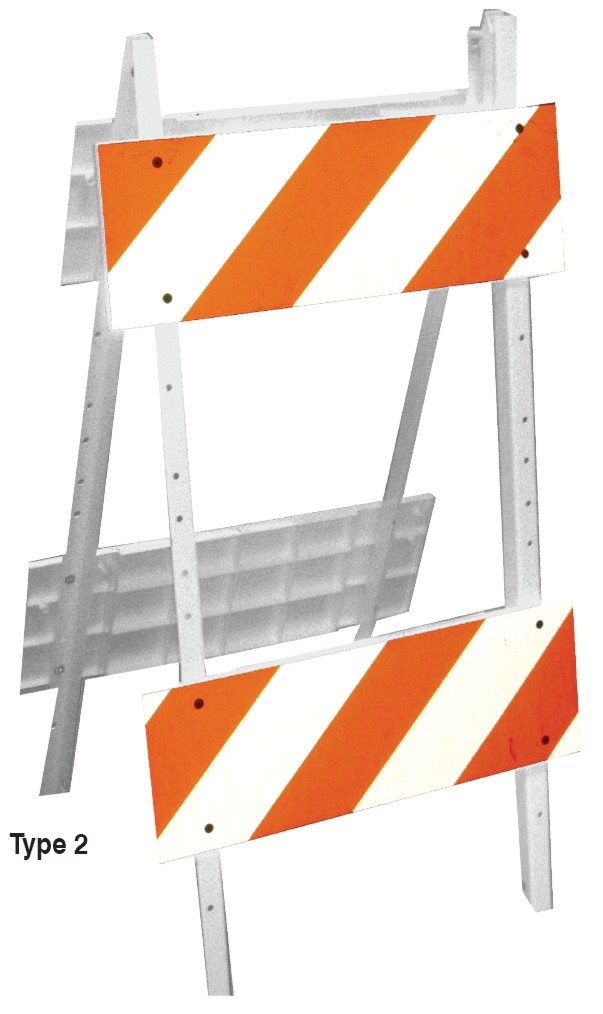

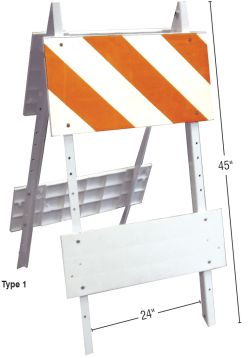

Panels feature engineer grade or high-intensity reflective sheeting with diagonal pattern that provides visibility, helpinG to keep workers safe and direct the flow of traffic. Type 1 barricade features sheeting on 12"H top panel only and 8"H white lower panel, for use on conventional road or urban streets. Type 2 barricade has sheeting on both top and bottom panels, which measure 8"H each, for use on freeways and expressways or other high-speed roadways. Dimensions are 45"H x 24"W.
Barricades meet MUTCD Section 6F and are tested to NCHRP-350 crashworthy performance criteria.
Related Documents
Selected Material Details
- Surface-printed prismatic sheeting (recognized by the Federal Highway Administration) is bonded to aluminum
- Meets ASTM D4956 Type 1 standards
- Resists rust and corrosion
- Withstands extreme temperatures and outdoor environments
- Rounded corners, 1/4" corner holes, or 3/8" postmount holes
- Service temperature range: -40° to 250°F
- Reflective sheeting provides extra visibility during low-light and nighttime conditions when light shines on the surface
- Excellent choice for regulatory, warning, and work zone signs
